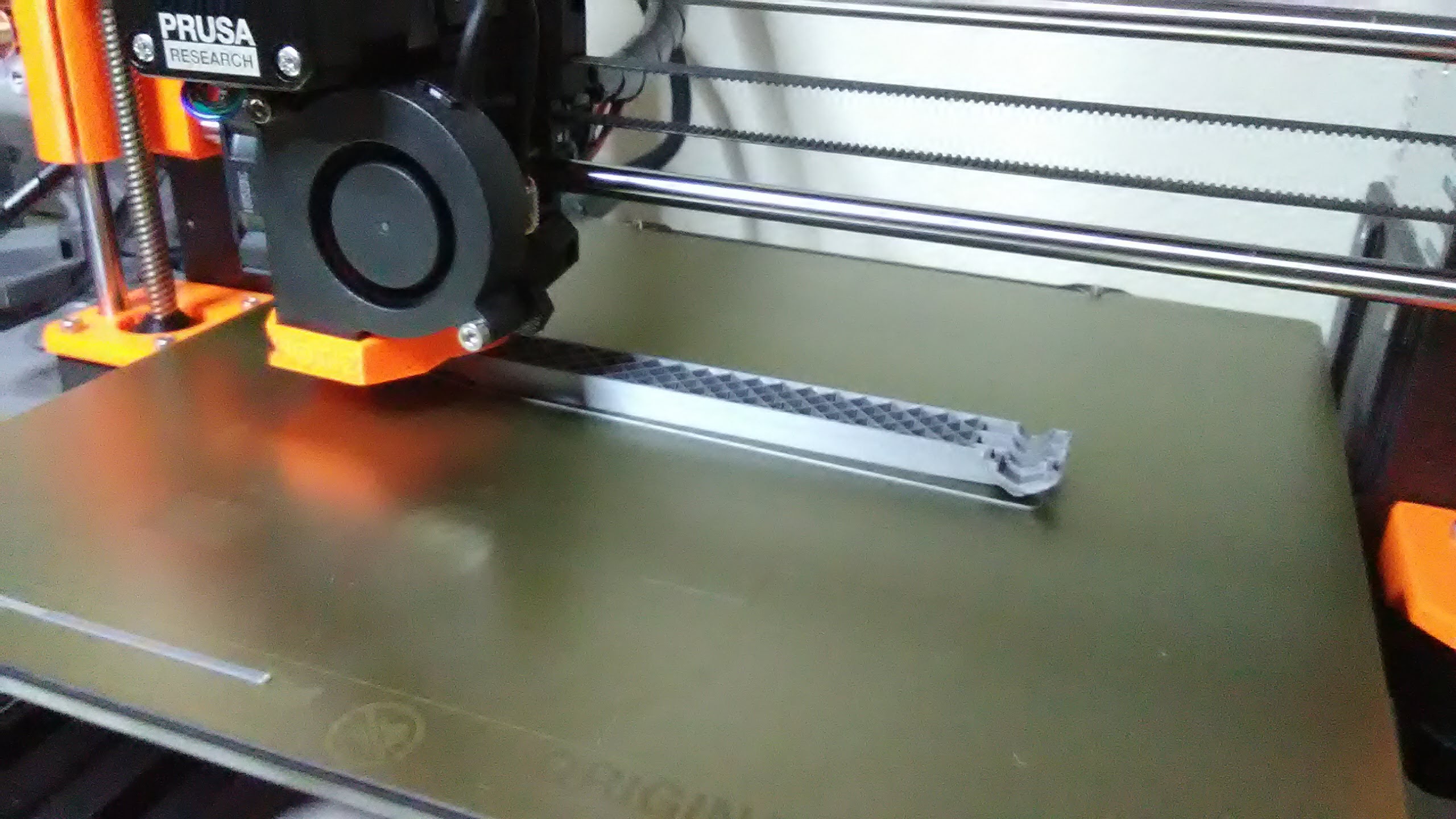

G+_Rud Dog Posted July 17, 2018 Share Posted July 17, 2018 Update on the Prusa I3 MK3 printer. Turns out the calibration you use via the control panel is not the way to go. Once I figured this out all was great in 3D printing land. If you purchase one of these do yourself a favor and print one single layer on the print bed and adjust using this model then theirs. I made mine 4 inch by 4 inch and was better able to see the quality of the print and the adhesion to the bed. Dialed it in and now I can walk away from printing and come back to a fully printing item. Link to comment Share on other sites More sharing options...
G+_Joe Valasko Posted July 17, 2018 Share Posted July 17, 2018 Congrats on getting it dialed in! Link to comment Share on other sites More sharing options...
G+_Jeff Gros Posted July 18, 2018 Share Posted July 18, 2018 Ok, so it was the z-offset then. What is this the extra model that you are referring to to help you get dialed in? Can you link to thingiverse? Link to comment Share on other sites More sharing options...

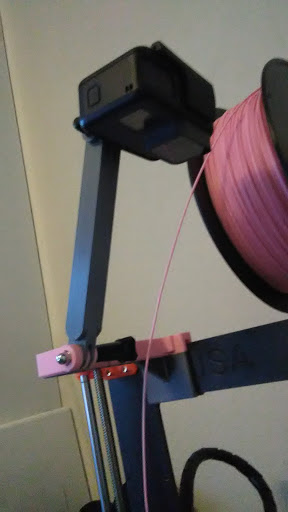

G+_Rud Dog Posted July 18, 2018 Author Share Posted July 18, 2018 Jeff Gros it was the first layer of a box measuring 4 inches by 5 inches. This allowed me to better see how the filament was being laid down. I would run it and if I didn't like what I was seeing adjust the Z axis. This took me the better part of the morning but now everything sticks. Just finished this arm for my camera. And ultimate test ran out of gray filament and swapped out for pink. It was all I had. Wonder what a coat of spray paint would to the PLA. Time for a test. Link to comment Share on other sites More sharing options...
G+_G Atkinson Posted July 18, 2018 Share Posted July 18, 2018 Agreed. I have the Monoprice version of that printer plus an Anet A8. I tried the control panel method once when I first bought the Monoprice. Since then I've always done it manually with a piece of printer paper. It's painful but the results are much better and it's much closer to correct when I start dialing it in. No other aides needed. Link to comment Share on other sites More sharing options...
G+_David Peach Posted July 18, 2018 Share Posted July 18, 2018 Spray paint works great on pla. Link to comment Share on other sites More sharing options...
G+_Jeff Gros Posted July 19, 2018 Share Posted July 19, 2018 Rud Dog FYI. New video on how to fix common issues. While I wouldn't call myself an expert, I've watched way too much 3d printing videos on youtube, and encountered/conquered many issues myself, so I thought I had seen just about everything. However, there were some things that I hadn't even considered as possible places for issues. Very much worth a watch. I'll be checking all these points carefully this weekend! Link to comment Share on other sites More sharing options...
G+_Rud Dog Posted July 19, 2018 Author Share Posted July 19, 2018 Jeff Gros I am a real believer in following that channel always looking for advice on the printer purchased. Thank you Link to comment Share on other sites More sharing options...
